Other  |  SKU: ZE-9
77% off

ZE-9

$32.44 $144.00
Shipping calculated at checkout.
Moeller ZE-9 thermal magnetic overload relay - adjusts from 6-9 AMPS - Class 10 tripping characteristic - Manual or Auto reset - Mounts directly to DILEM-10 or DILEM-01 contactors

ZE-9 Datasheet

Ships same day up until 4 p.m. EST

5-7 days for item to ship for standard delivery

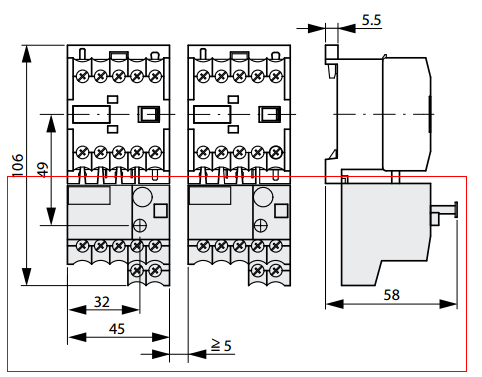

Class 10 overload; trip response from 2 to 10 seconds Ambient compensated, bimetallic overload tripping mechanism Phase failure sensitive to IEC/EN 60947 Manual / Automatic reset button Built-in NO and NC auxiliary contacts Direct mount to DILEM-10, DILEM-01, DILEM-10-G, DILEM-10-01-G contactors

eaton moeller logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Modern motors are built with less metal, which means they dissipate less heat. This calls for the modern protection offered by IEC-style Class 10 overload relays...they trip in 10 seconds under locked rotor conditions. Most motor manufacturers today recommend this type of “close” protection. All Moeller series ZE overload relays come with a host of standard features including phase-failure sensitivity, temperature compensation, test / reset buttons and a tripfree release. The auxiliary contacts of the relay disconnect the motor contactor and signal a fault. Moeller series relays can also be used for protecting EExe hazardous location motors.

Click here for a catalog page on the ZE overload relay
