CL06E300M

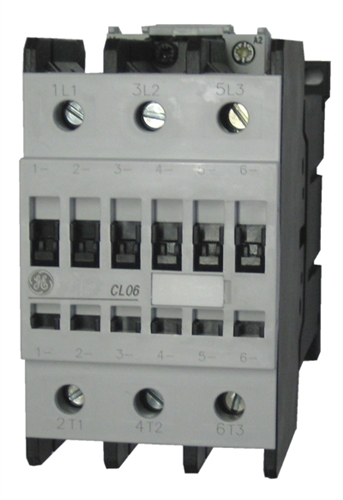

GE CL06E300M 3 pole UL/CE IEC rated contactor with electronic coil


Alternative Views:
GE Industrial CL06E300M 3-pole, 60 AMP contactor rated 30 H.P. @ 460 volt 3 Phase and has an AC/DC electronic coil (must choose voltage below)



CL06E300M Datasheet

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Quantity in Stock:(Out of Stock)

Availability : Obsolete - Please see link above for replacement
Product Code: CL06E300M
Qty:

Description Detailed Specifications

The GE CL line of Electronic Coils are loaded with features that make them easier to install, allow more flexible configurations, lower inventory requirements, and make better use of panel space. And their performance is second to none. The GE CL06E300M conforms to international standards (UL, cUL, and IEC-947) and have dual (U.S./European) markings to ensure global acceptance. A single nomenclature system allows simple sourcing worldwide. AC coils (both 50 Hz and 60 Hz versions) and DC coils are available for a wide range of voltages for flexibility.
Technical Specifications
  • Broad line offers wide array of contactors to meet most application needs from 5-500 HP at 460 volts.
  • Common snap in accessories gives greater design versatility with lower inventory. Overload relays available in class 10, 20, and 30 with four set 40 function.
  • Manual reset only overload to meet automotive requirements
  • Finger and back of hands protected for greater safety
  • Available with Ring Terminal Connections
  • AC and DC coils available for a wide range of voltages
  • Pre-assembled reversing forms available
