XTCS500M
Eaton XTCS500M 500 AMP 3 pole contactor

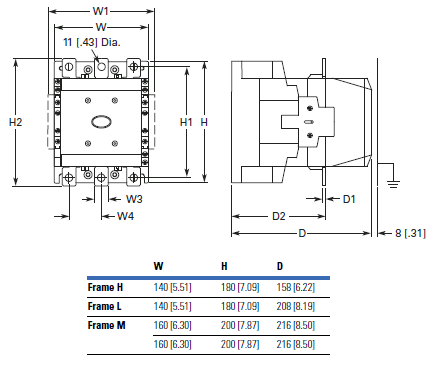

Alternative Views:
EATON XTCS500M 500 AMP contactor with an AC rated coil (must specify voltage below) - Rated for 200 H.P @ 230 volt, 400 H.P. @ 460 volt 3 Phase - comes with two sets of side mounted auxiliary contacts, both with 1 N.O. and 1 N.C. contacts each

Not the correct contactor that you need? Click here to determine the appropriate Eaton XTCE for you.

XTCS500M Datasheet
List Price: $10,496.44
Our Price: $3,148.93
Savings: $7,347.51
Stock Items : Ships same day up until 4 p.m. EST
Non-Stock Items : 1-2 days for item to ship for standard delivery

Quantity in Stock:(Out of Stock)

Availability : Out of Stock - Can ship in 1-2 weeks
Product Code: XTCS500M


Eaton Coil Codes*:

Qty:
Description Detailed Specifications

The Eaton XTCE Size M IEC rated 3 pole contactors are the most durable, longest lasting contactors made today.  The XTCE line is identical to the Klockner Moeller DILM line and is just as reliable.  It is not uncommon for these contactors to last 10-15 years without needing to be replaced, thus saving both the time and expense of buying a new contactor.  And with ranges from 400 up to 500A, all of your low voltage contactor needs can be met.
Technical Specifications
  • AC control from 12V to 600V 50/60 Hz
  • DC control from 12V to 220V
  • Available with screw or spring cage terminals
  • Reversing or non-reversing contactors and starters
  • AC-3 contactor ratings to 1000A and AC-1 contactor ratings to 2000A
  • Non-reversing starters to 650A
  • Panel or DIN rail mounting to 65A
  • IP20 finger and back-ofhandproof
  • Large ambient temperature range, –25 to 50°C [–13 to 122°F]
