EC09A311B120
GE EC09A311B120 9 AMP contactor


Alternative Views:

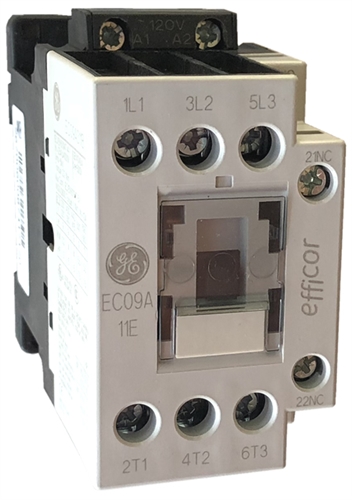

GE EFFICOR EC09A311B120 3-pole, 9 AMP contactor with a 120 volt AC coil. The EC09A311B120 is rated for 5.5 H.P. @ 460v 3 Phase, can be mounted on standard 35mm DIN rail and comes with 1 normally open and 1 normally closed contact set.

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

EC09A311B120 Datasheet
List Price: $104.00
Our Price: $31.73
Savings: $72.27

Quantity in Stock:5

Availability : Ships today if ordered before 4 p.m. EST
Product Code: EC09A311B120
Qty:

Description Detailed Specifications

The new GE Efficor line of IEC and UL rated contactors offers the most up-to-date technology in the smallest and compact sizing available in the market today.  Each contactor from 9 AMP up to 40 AMP includes a set of normally open and normally closed base mounted auxiliary contacts that reduces complexity, minimizes space requirements and keeps cost low.  When replacing the previous CL00A300T series with the new EC09A 11 E series, there is no change in size making the conversion from old to new as simple as any standard replacement.
Technical Specifications
  • Broad line offers wide array of contactors to meet most application needs from 5-500 HP at 460 volts.
  • Common snap in accessories gives greater design versatility with lower inventory. Overload relays available in class 10, 20, and 30 with four set 40 function.
  • Manual reset only overload to meet automotive requirements
  • Finger and back of hands protected for greater safety
  • Available with Ring Terminal Connections
  • AC and DC coils available for a wide range of voltages
  • Pre-assembled reversing forms available
