C65DNJ350T

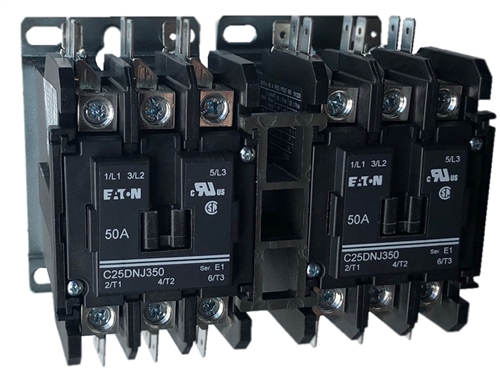

Eaton C65DNJ350T 3 pole Definite Purpose Reversing Contactor set


Eaton / Cutler Hammer C65DNJ350T definite purpose reversing contacter that is rated for 50 AMPS, has three poles per contactor and 24v50/60Hz AC rated coil. This reversing set comes with mounting plates and is mechanically interlocked for two speed and reversing motor applications. Double quick connect terminals come standard on the C65DNJ350T and optional side mounted single pole or two pole auxiliaries can be added for additional signalling purposes.

Catalog Page / Specifications
List Price: $1,124.52
Our Price: $381.37
Savings: $743.15


Availability : Out of Stock - Can ship in 5-7 days
Product Code: C65DNJ350T


Eaton C25D Auxiliaries:

Qty:
Description Detailed Specifications

C65 Reversing Contactors from Eaton’s electrical sector are furnished with pressure plates and quick connect terminals as standard on 15, 25 and 30A devices and with box lugs and quick connect terminals on 40, 50, 60 and 75A.
Technical Specifications
  • UL Recognized Components UL File #E-1491, Guide NLDX2
  • UL recognized, CSA certified and conform to ARI 780
  • CSA Certified Components File #LR353, Class 3211 04, 481301 and 122201
  • IEC 60947-4-1
  • EN 60947-4-1
  • CE mark
  • RoHS Compliance(15A to 50A and 90A)
