AN16NN0
Eaton AN16NNO 135 AMP NEMA rated Starter

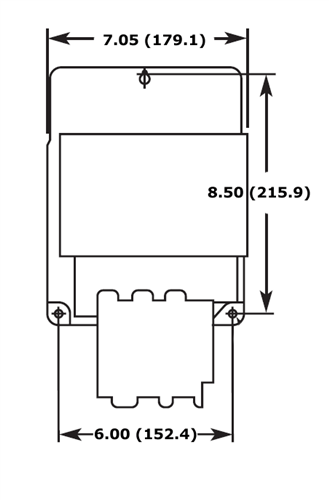

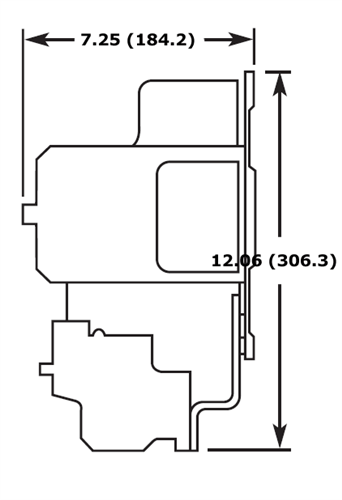

Alternative Views:
Eaton / Cutler Hammer AN16NN0 NEMA Size 4 135 AMP Starter is rated for 100 H.P. @ 460 volt 3 Phase, an AC coil (must specify voltage below), has a bimetallic overload relay that has manual or automatic reset (heater packs are required and sold separately) and has a side mounted normally open auxiliary contact

AN16NN0 Datasheet

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
List Price: $6,466.70
Our Price: $2,475.74
Savings: $3,990.96

Quantity in Stock:(Out of Stock)

Availability : Stock - Can ship today if ordered prior to 4 p.m. EST
Product Code: AN16NNO


Eaton Coil Codes*:

Qty:
Description Detailed Specifications

The Eaton AN16 Freedom Series NEMA rated starters feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials.  Adjustable bimetallic ambient compensated overload relays with interchangeable heater packs—available in three basic sizes, covering applications up to 900 hp—reducing the number of different contactor/overload relay combinations that have to be stocked.  These three-phase, full voltage non-reversing magnetic starters are most commonly used to switch AC motor loads. Starters consist of a magnetically actuated switch (contactor) and an overload relay assembled together.
Technical Specifications
  • Selectable manual or automatic reset operation
  • Interchangeable heater packs adjustable ±24% to match motor FLA and calibrated for 1.0 and 1.15 service factors. Heater packs for smaller overload relay will mount in larger overload relay— useful in derating applications such as jogging
  • Load lugs built into relay base
  • Single-phase protection, Class 20 or Class 10 trip time
  • Overload trip indication
  • Electrically isolated NO-NC contacts (pull RESET button to test)
  • Sizes 00–3 have a NO auxiliary contact block mounted on right-hand side (on Size 00, contact occupies 4th power pole position—no increase in width)
