3RB3016-2PB0

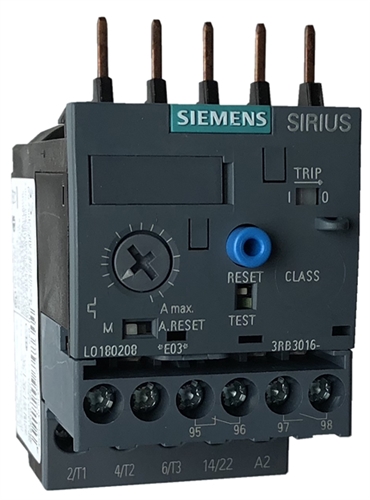

Siemens 3RB3016-2PB0 Electronic Overload Relay


Alternative Views:
Siemens 3RB3016-2PB0 solid state overload relay that adjusts from 1 to 4 AMPS, is rated for Class 20 tripping, mounts directly to any 3RT2015, 3RT2016, 3RT2017 or 3RT2018 3-pole contactor, has a manual and automatic reset along with a set of 1 N.O. and 1 N.C. auxiliary contacts.
List Price: $102.00
Our Price: $80.47
Savings: $21.53

Quantity in Stock:(Out of Stock)

Availability : Stock - Can ship today if ordered prior to 4 p.m. EST
Product Code: 3RB3016-2PB0
Qty:

Description Detailed Specifications

The new Siemens 3RB3016 overload relays are used for protecting motors in three ways: protection of loads from phase failure, from complete phase loss and AMP overloading for an extended period of time (time dependent on class setting of overload). They provide electronic protection that is superior to their thermal overload counterparts and also provide a wide range of AMP settings that reduces inventory and increases usability.

Each Siruis 3RB3 overload has two auxiliary contacts for trip indicating status, a TEST button, a RESET button along with a trip indication window for visual notification that the unit has entered a tripped state. These overloads mount directly to any Siemens 3RT2 size S00 contactor, which includes contactors ranging from the 3RT2015 to the 3RT2018 3 pole contactors.
Technical Specifications
  • Overload protection, phase failure protection and unbalance
  • protection
  • Internal power supply
  • Auxiliary contacts 1 NO + 1 NC
  • Manual and automatic RESET
  • Switch position indicator
  • TEST function and self-monitoring
