140A-C2A-C10

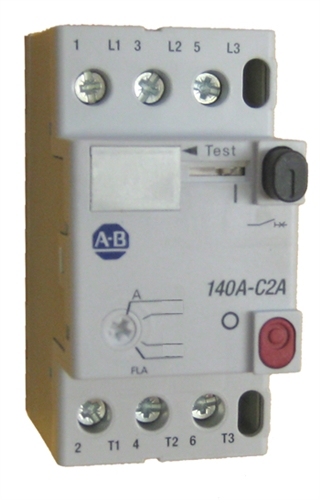

Allen Bradley 140A-C2A-C10 Manual Motor Starter

Allen Bradley 140A-C2A-C10 Manual Motor Starter that has an adjustable AMP settings from 6.3 to 10 AMPS, Class 10 tripping characteristic, push button ON/OFF operation and mounts on standard 35MM DIN Rail

140A-C2A-C10 Datasheet
List Price: $239.00
Our Price: $121.17
Savings: $117.83
Note: IMC-Direct is not an authorized Rockwell Automation distributor
Note: This product does not come with a Rockwell Automation warranty

Quantity in Stock:(Out of Stock)

Product Code: 140A-C2A-C10
Qty:

Description Detailed Specifications

The Allen Bradley 140A-C2A-C10 3 pole Manual Motor Starter provides an economical motor starter solution for your three phase motor applications.  Each unit can be used for the switching of standard 3 phase AC motors where over amperage protection is required.  The AB 140A-C2A series has a magnetic release for AMP ranges varying from 0.10 AMPS (for fractional horsepower motors) up to an including 16 AMP motors.  The start/stop push button operation makes it easy to use along with a TEST feature to determine if you motor is operating properly.  Additional side mounted auxiliary contacts can be added along with under voltage and shunt trips to complete to motor protection device.
