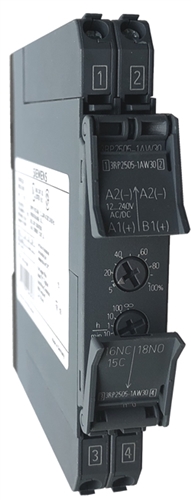

The functions of the 3RP2505 multi-functional timing relays can be set by means of the function selector switch. Whether both CO contacts are switched in parallel or one CO contact with a delay and one instantaneously and the choice of time setting range are set by means of the time setting range selector switch. The exact operating time can be adjusted with the operating time switch. With a set of foil labels the timing relay can be legibly marked with the functions which can be selected on the timing relay. This is supplied together with the multi-functional timing relay.
- Click here for a catalog page of this 3RP2505 timing relay
- A - ON-delay
- B - OFF-delay with control signal
- C - ON-delay/OFF-delay with control signal
- D - Flashing, symmetrical, starting with interval
- E - Passing make contact, interval relay
- F - Retriggerable interval relay with deactivated control signal
- (passing break contact with control signal)
- G - Passing make contact, with control signal, not retriggerable
- (pulse-forming with control signal)
- H - Additive ON-delay, instantaneous OFF with control signal
- I - Additive ON-delay with control signal
- J - Flashing, symmetrical, starting with pulse
- K - Pulse-delayed (fixed pulse (at 1 s) and settable pulse delay)
- L - Pulse-delayed with control signal (fixed pulse (at 1 s) and settable
- pulse delay)
- M - Retriggerable interval relay with activated control signal (watchdog)
Rated Insulated Voltage : 300v
Rated Power (Power consumption at 230v) : 2 W, 4 VA
Required DIAZED Fuse : 4A gL/gG
Recovery time : 150ms
Minimum ON period : 35ms
Setting Accuracy : +/- 5%
Mechanical cycles lifetime : 30,000,000 operations
Degree of protection : Cover = IP40, Terminals = IP20
|
|
|
 |
|
 |
|
