100-E65KD00

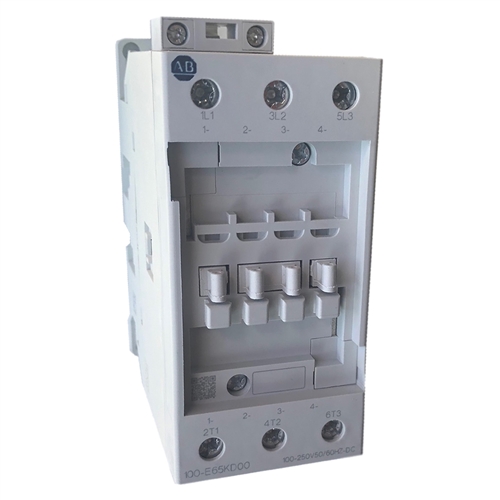

Allen Bradley 100-E65KD00

Alternative Views:
The 100-E65KD00 is the next generation of motor contactors offered by Allen Bradley, a leader in the industrial motor control industry. This 65 AMP, 3 pole contactor is rated for 25 horsepower at 240 volt and 50 horsepower at 480 volt, has screw terminals and can be mounted on standard 35MM DIN rail. With an electronic coil that spans from 100 to 250 volt AC or DC, the 100-E65KD00 is the replacement for the existing 100-C60D00, 100-C60KF00 and the 100-C60L00 contactors all in one unit which reduces inventory complexity and cost

Country of Origin : France
H.S. Code : 8536.49.0065
List Price: $459.59
Our Price: $289.55
Savings: $170.04
Note: IMC-Direct is not an authorized Rockwell Automation distributor
Note: This product does not come with a Rockwell Automation warranty

Quantity in Stock:6

Availability : Stock - Can ship today if ordered prior to 4 p.m. EST
Product Code: 100-E65KD00


Allen Bradley 100-E Auxiliaries:

Allen Bradley 100-E Overloads:

Qty:
Description

Allen Bradley is now offering a new line to replace its widely popular 100-C series of contactors and accessories: 100-E motor contactors with electronic coils. With just four different options for voltages ranging from 24 volt AC/DC up to 500 volt AC/DC, this new series reduces complexity and inventory costs yet offers the same trusted reliability those have come to expect from Allen Bradley. The versatility can be shown by the coil terminations can be moved from line to load side with having to dissemble the contactor, thus reducing downtime when replacements are needed. Each contactor comes pre-installed with built-in surge suppression all the while maintaining the narrow profile of the existing 100-C series of contactors
Technical Specifications
  • AMP RatingHorsepower Rating / 3 PhaseAuxiliary ContactsPart #Coil Voltage
    AC-3AC-1200v230v460v575vN.O.N.C.
    65
    		105
    		20
    		25
    		50
    		60
    		00100-E80KD00100-250vAC/DC
